Synchronous Condenser Electrical E-House Integration Solution

Factory-built electrical space for synchronous condenser projects

Power & Utility Grid Infrastructure

For synchronous condenser projects with multiple electrical zones, split modules and complex site interfaces, ETENZ delivers E-House detailing, primary and secondary zoning, environmental control, fire safety, security and prefabricated site handover interfaces around the customer drawings and technical agreement.

2 modules

Build

Pri. / Sec.

Zoning

By drawings

Detailing

Consult Solution Now

Solution Features

Two-module assembly delivery

Module split, transport envelope, lifting points, joint sealing, base connection and inter-module interfaces are detailed before manufacturing so large synchronous condenser E-Houses can be assembled on site with fewer interface surprises.

Primary and secondary zoning detail

Primary equipment space, protection and control panels, cable routes, grounding points and maintenance corridors are organized from the customer drawings to reduce cross-discipline coordination on site.

Auxiliary systems integration

HVAC, lighting, fire protection, security, monitoring, drainage and corrosion protection requirements are configured according to project conditions and technical agreements.

Application Scenarios

Grid-side synchronous condenser stations

For new-build or retrofit synchronous condenser stations, primary equipment cabins, secondary protection and control cabins, auxiliary power, communication, monitoring and enclosure support systems are arranged as prefabricated delivery units.

Benefits

Locks in equipment layout and inter-module interfaces earlier

Reduces coordination across civil, electrical and site installation work

Makes factory inspection and handover documentation easier to manage

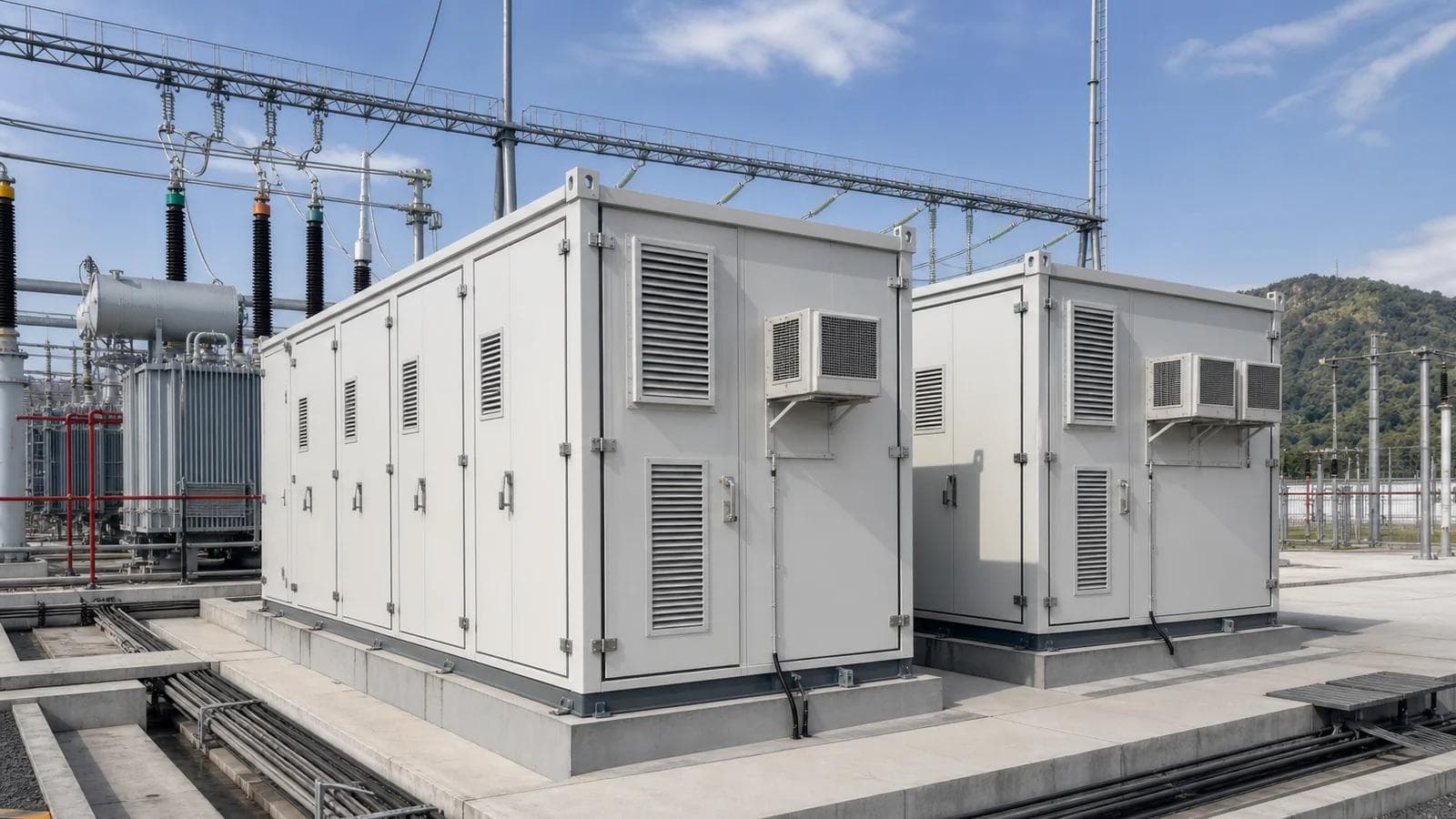

Realistic grid synchronous condenser station with prefabricated electrical E-House modules — Prefabricated primary and secondary electrical E-House interfaces for a grid-side synchronous condenser station

Renewable grid-connection reactive power support

For wind, solar and energy storage collector stations that add synchronous condensers for reactive power support, the E-House platform coordinates cabinet layout, module interfaces and auxiliary systems.

Benefits

Adapts to project drawings, equipment lists and technical agreements

Supports separate primary and secondary cabin zoning

Improves repeatability for similar collector-station deployments

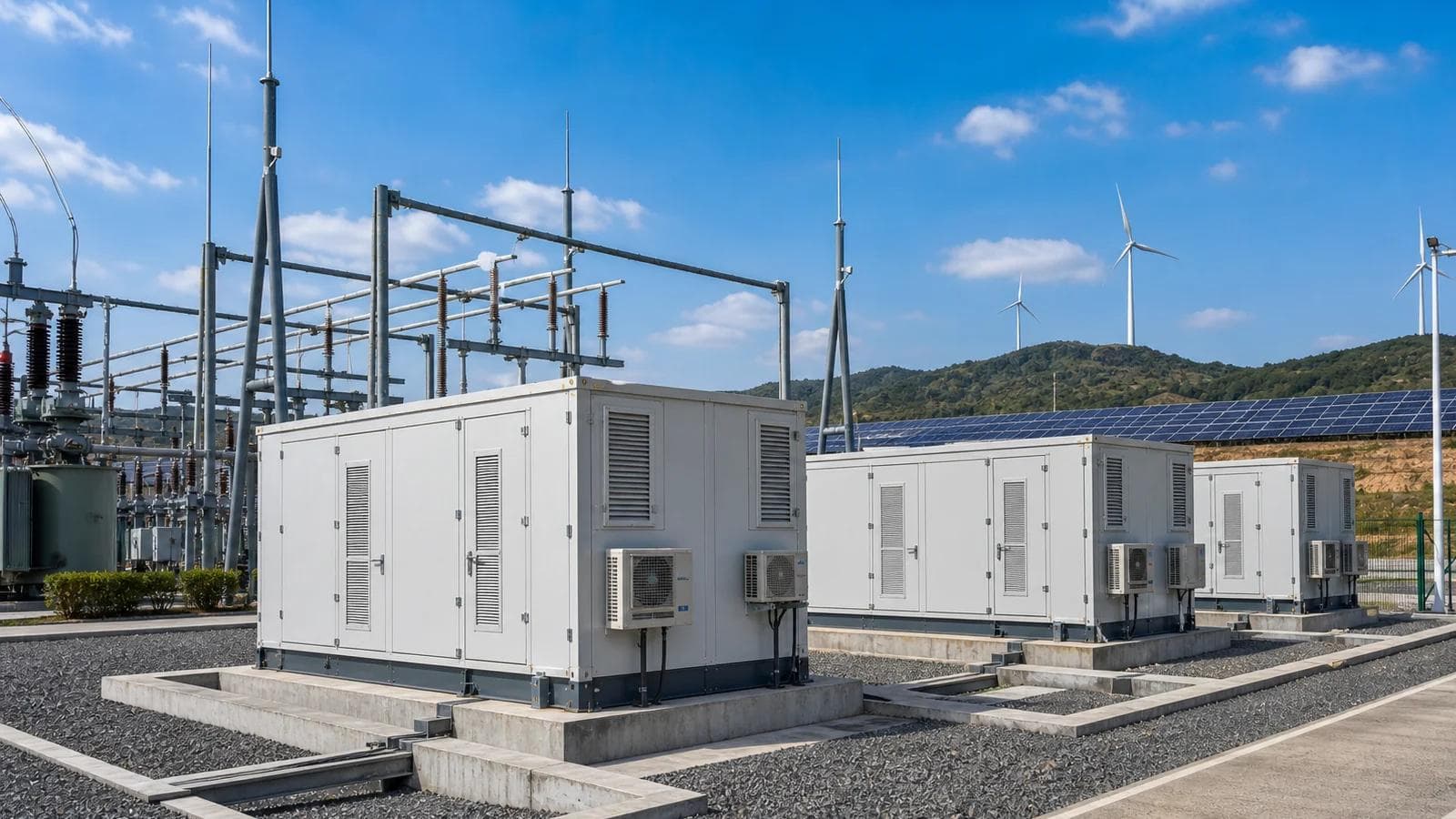

Renewable grid-connection reactive power support project with prefabricated electrical E-House modules — Electrical E-House and interface integration for reactive power support at renewable collector stations

Detailed Solution

Electrical E-Houses for synchronous condenser projects must accommodate primary equipment, secondary protection and control, auxiliary power, HVAC and fire safety systems. Large module size, multiple interfaces, transport and multi-discipline coordination are often the delivery bottlenecks. ETENZ translates customer drawings and technical agreements into a two-module E-House arrangement, completing zoning and interface detailing before manufacturing so site coordination is moved into the factory stage.

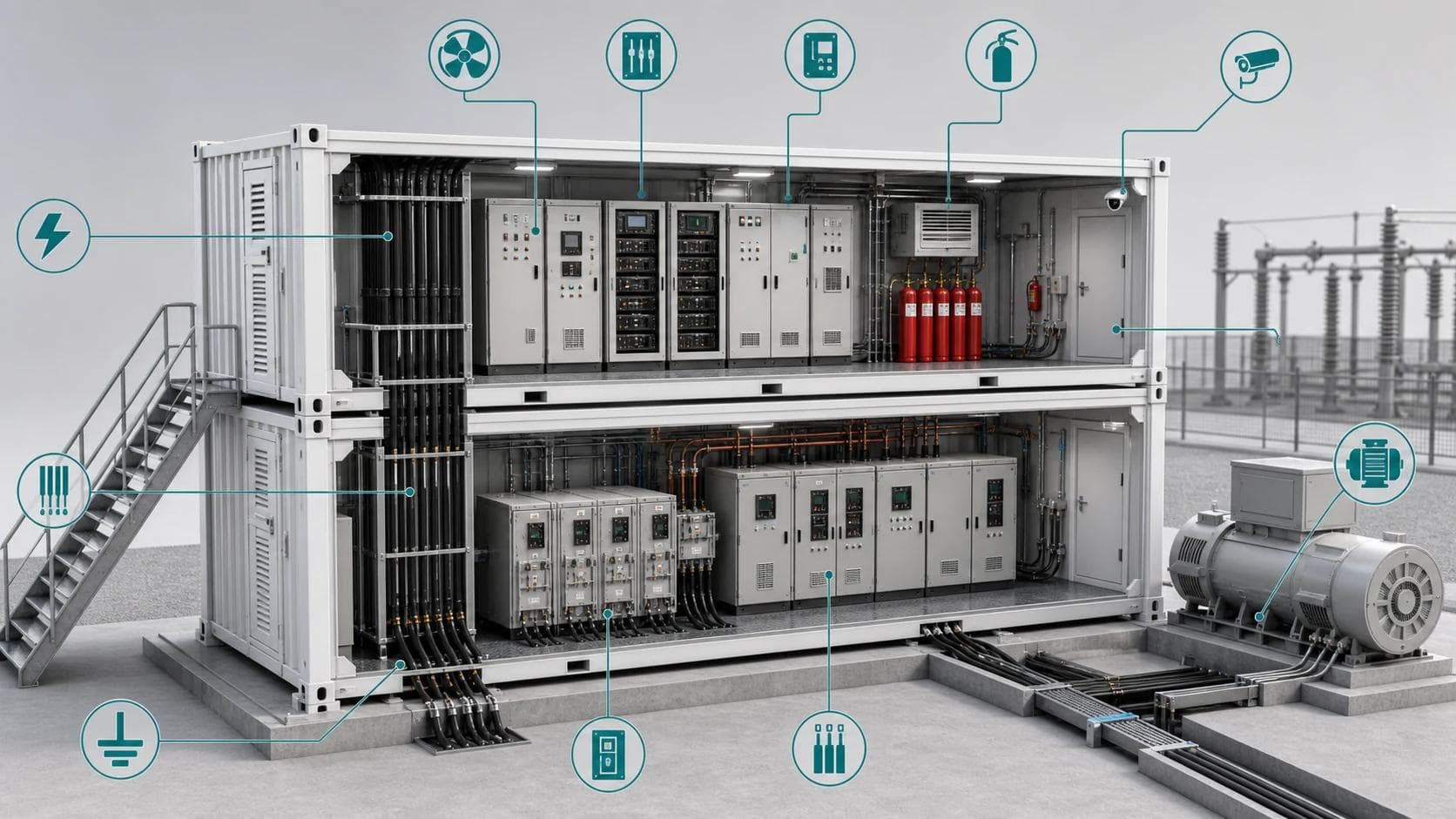

System architecture for a customized assembled synchronous condenser E-House integration solution

Integration relationship between power distribution, control and protection, HVAC, fire and security, grounding, cable interfaces and synchronous condenser interfaces

The customer remains responsible for main equipment selection and primary system design. ETENZ takes the approved drawings as input and delivers cabin detailing, manufacturing, auxiliary system integration and factory inspection so the delivered units arrive with prepared interfaces and complete handover documentation.
